Dedicated designs for all wearable form factors
遗憾的是，此页面的内容没有中文版
用谷歌翻译

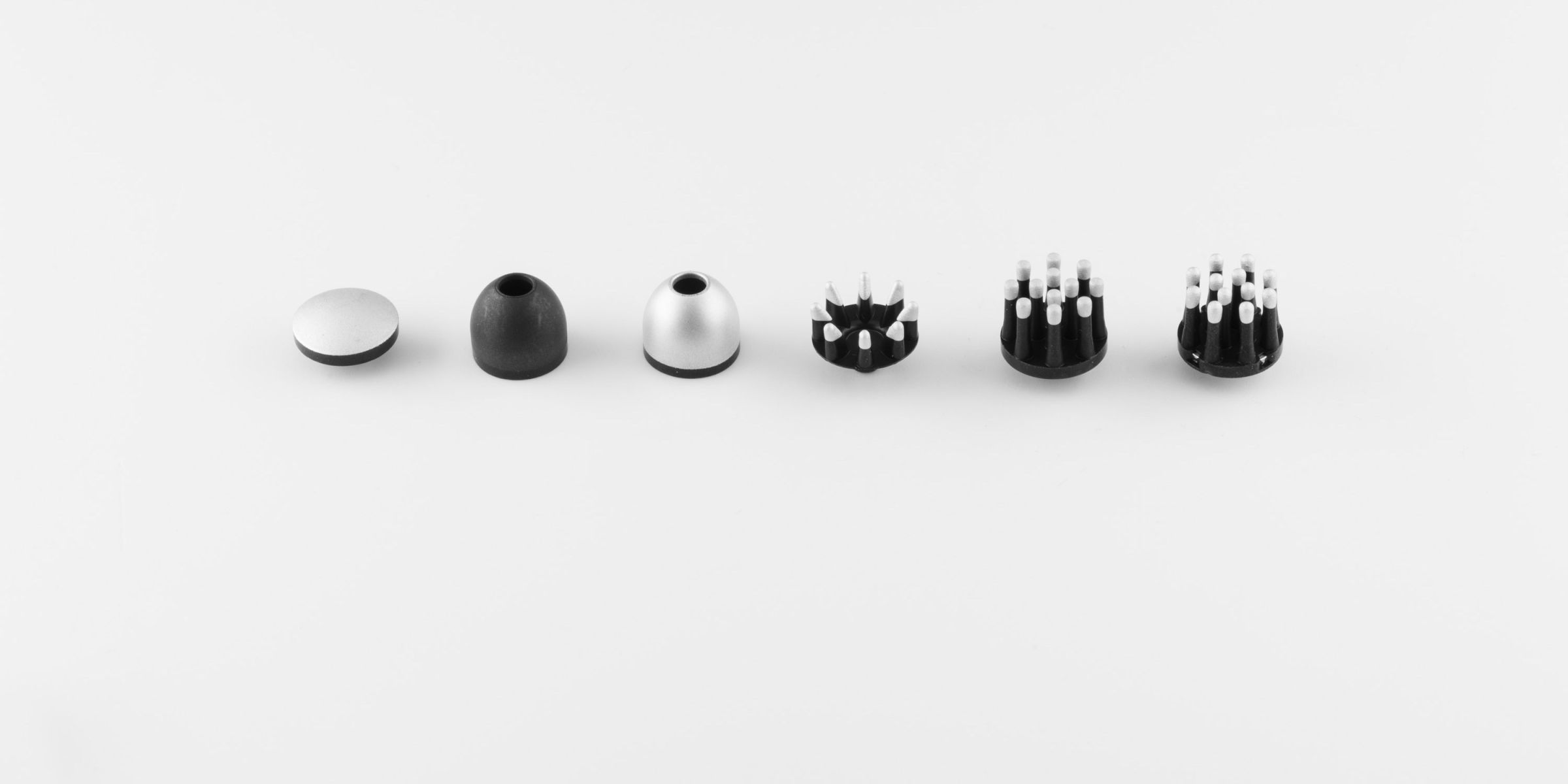

SoftPulse™ is available in several standard shapes and can be customized to meet your specific needs.
|
SoftPulse™ Flat |
SoftPulse™ Dome |
SoftPulse™ Brush Medium |
SoftPulse™ Brush Long |
SoftPulse™ Flex |
SoftPulse™ In-Ear |
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
| Design | Flat | Dome | Brush | Brush | Brush | Earbud |
| Features | Curvature 1.5 mm | 15 legs (5 mm L, 1 mm Ø) | 12 legs (8 mm L, 1.5 mm Ø) | 8 legs (6.5 mm L) | ||
| Total height | 4.7 mm | 6.5 mm | 9.5 mm | 13.5 mm | 9.5 mm | 10.0 mm |
| Outer diameter |
13 mm | 13 mm | 13 mm | 13 mm | 13 mm | 12 mm |
| Contact area | 132.7 mm2 | 143.1 mm2 | 11.8 mm2 | 21.2 mm2 | 6.8 mm2 | 362.4 mm2 (theoretical) |
| ECG standard snap | ○ | ○ | ○ | ○ | ○ | |
| Read More | Read More | Read More | Read More | Read More | Read More |

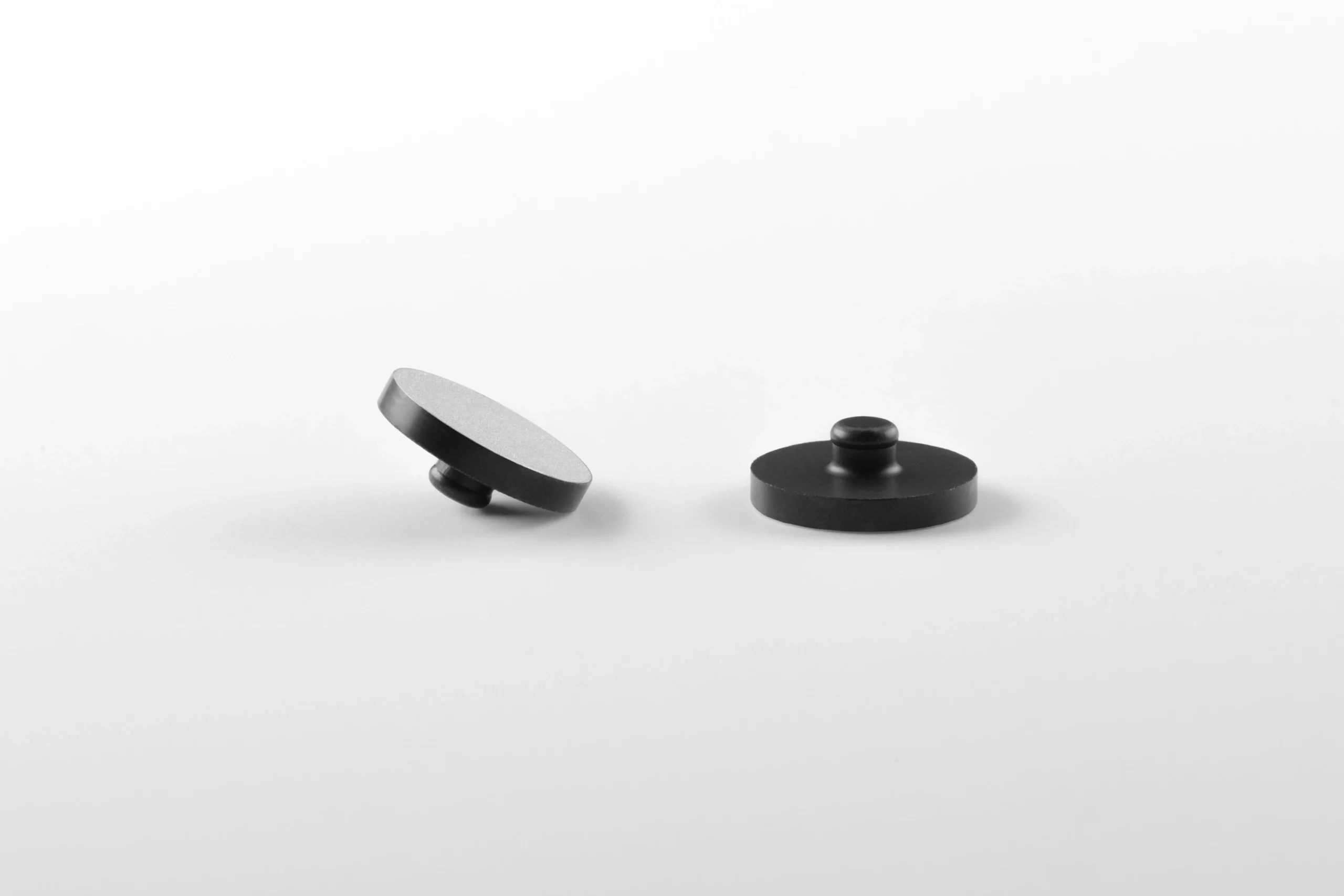

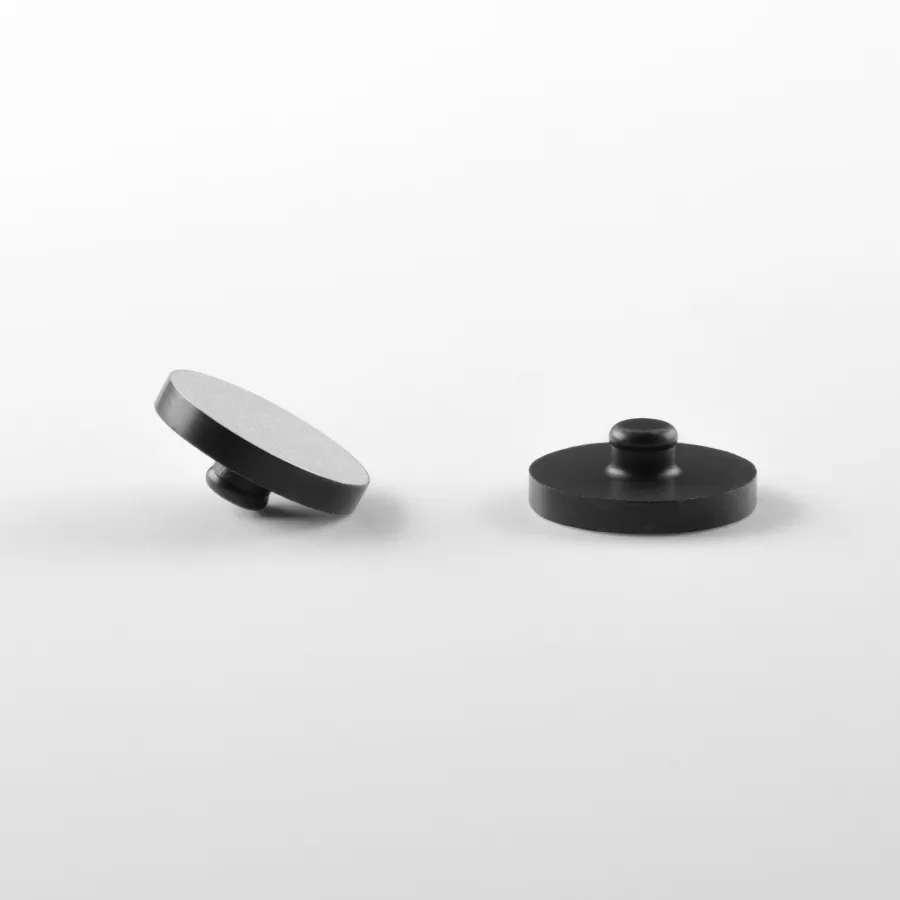

SoftPulse™
Flat
Ideal for contact with flat or convex non-hairy regions. Flat design allows seamless integration with flat hardwares with no pressure marks.
- Flat design
- 4.7 mm total height
- 13 mm outer diameter
- 132.7 mm2 contact area
- ECG standard snap
Suitable for:
Wristband
Headset
Hearable
Glasses

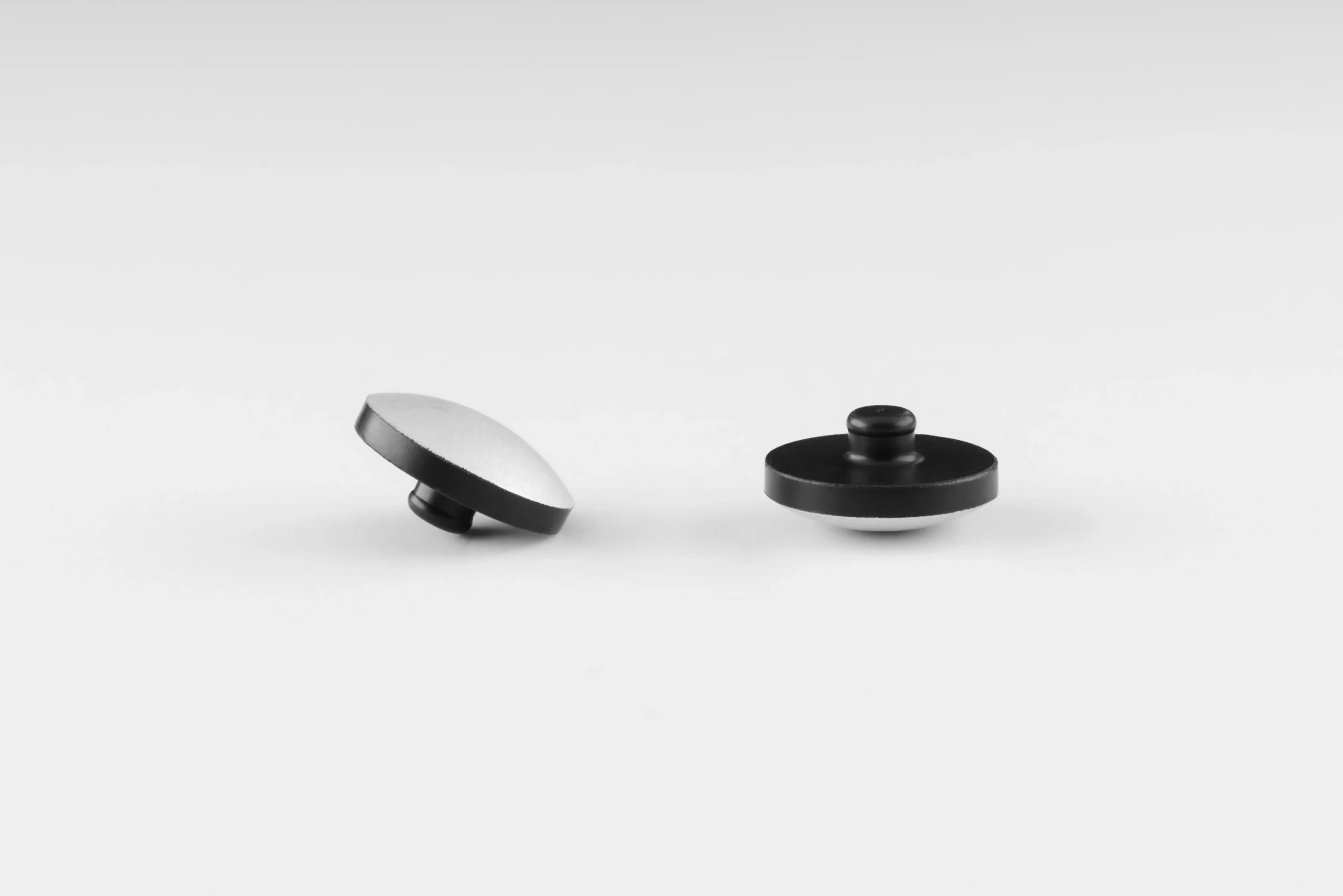

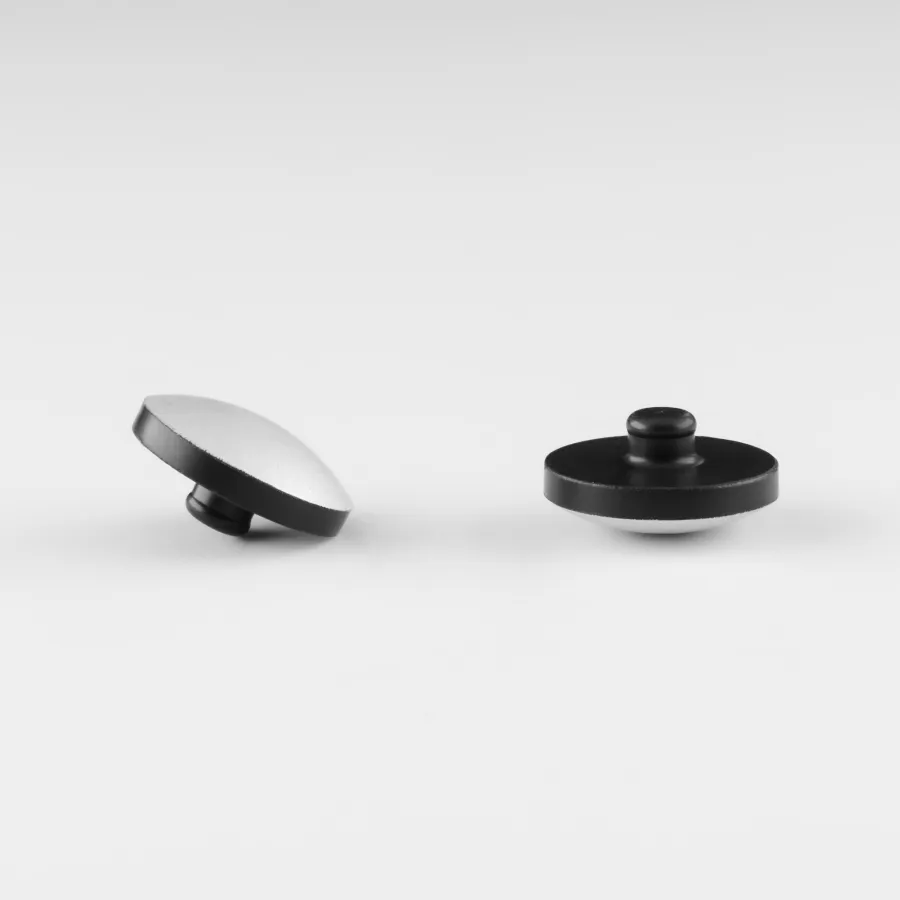

SoftPulse™
Dome
Dome design allows for extra pressure on the skin for better contact and lower motion artifacts. Dome electrodes are ideal for slightly concave surfaces (e.g. wrist region).
- Dome design ECG standard snap
- Curvature 1.5 mm
- 6.5 mm total height
- 13 mm outer diameter
- 143.1 mm2 contact area
- ECG standard snap
Suitable for:
Wristband
Headset
Hearable
Glasses

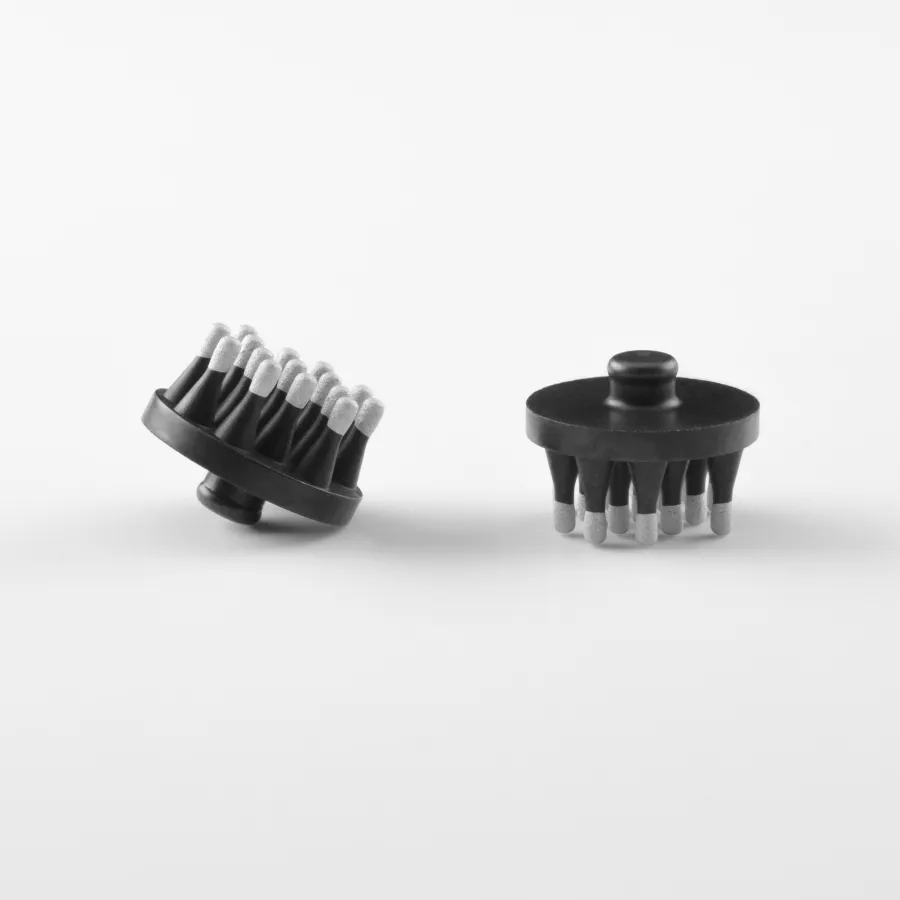

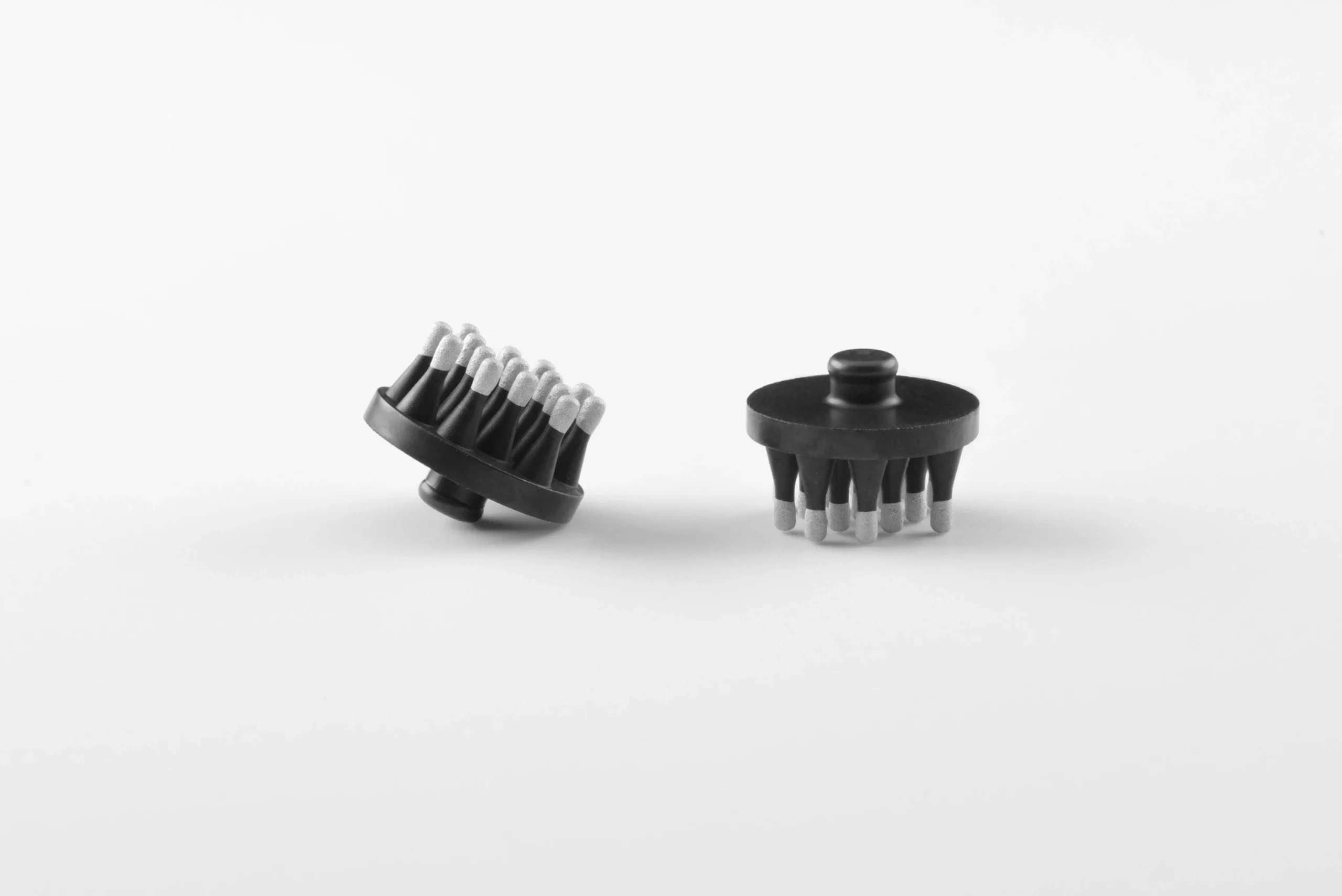

SoftPulse™
Brush Medium
Brush Medium design allows hair penetration for optimal skin contact in hairy regions. Medium design is suggested for low-medium hair density and for straight hair styles.
- Brush design
- 15 legs (5 mm L, 1 mm Ø)
- 9.5 mm total height
- 13 mm outer diameter
- 11.8 mm2 contact area
- ECG standard snap
Suitable for:
Headset
Glasses
SoftPulse™

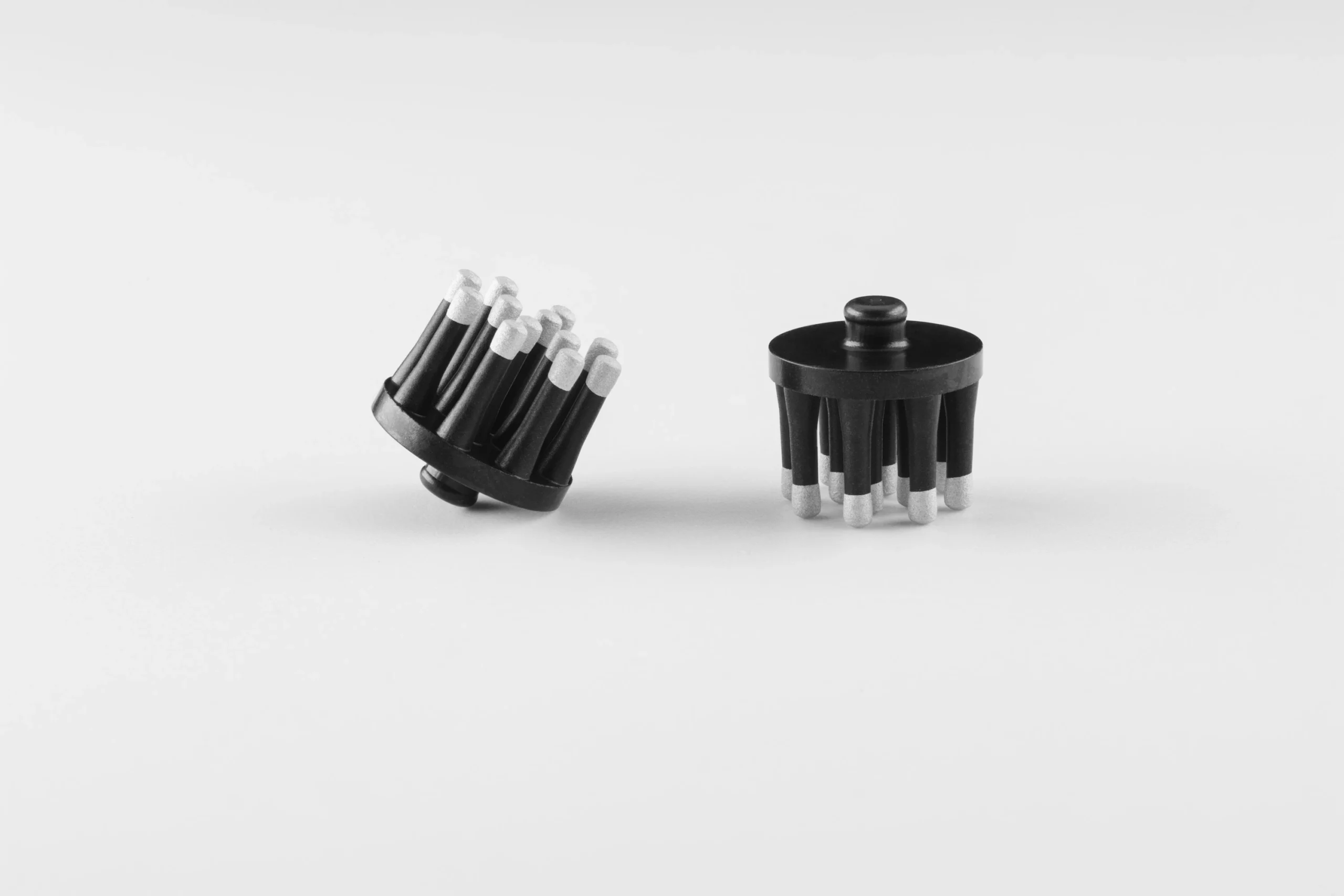

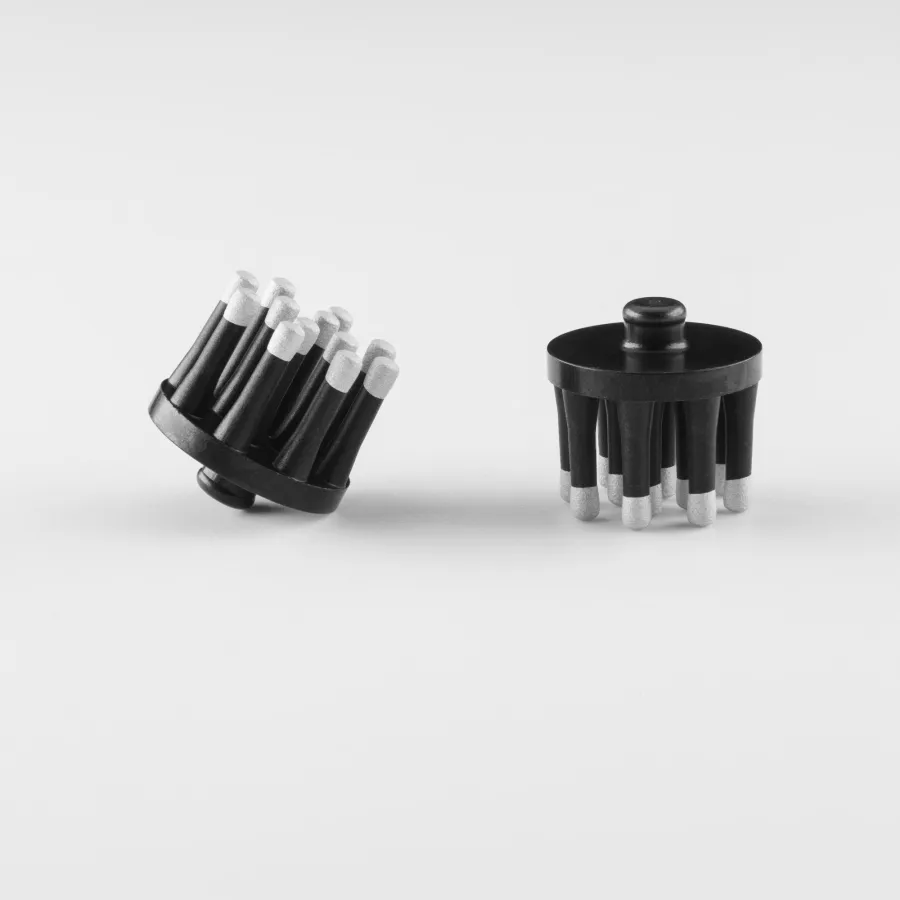

Brush Long
Brush Long design has to be preferred for hairy regions with high hair density and curly hair style. In headsets, the longer legs allow more space between scalp and hardware housing.
- Brush design
- 12 legs (8 mm L, 1.5 mm Ø)
- 13.5 mm total height
- 13 mm outer diameter
- 21.2 mm22 contact area
- ECG standard snap
Suitable for:
Headset
Glasses

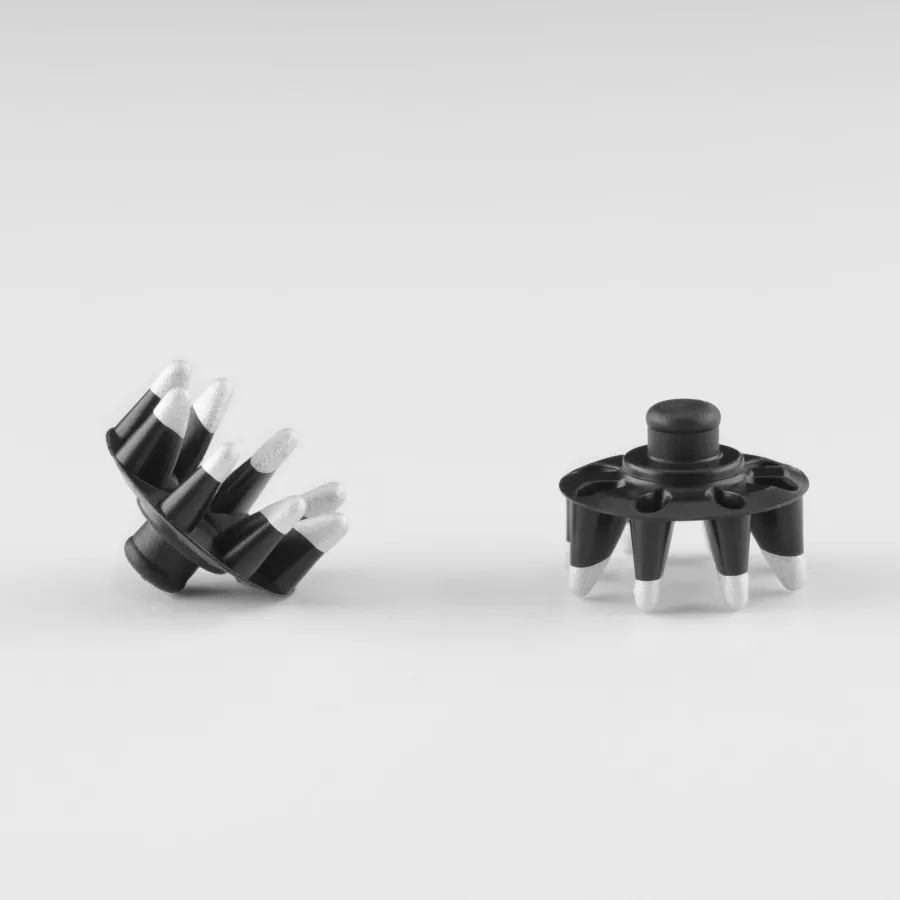

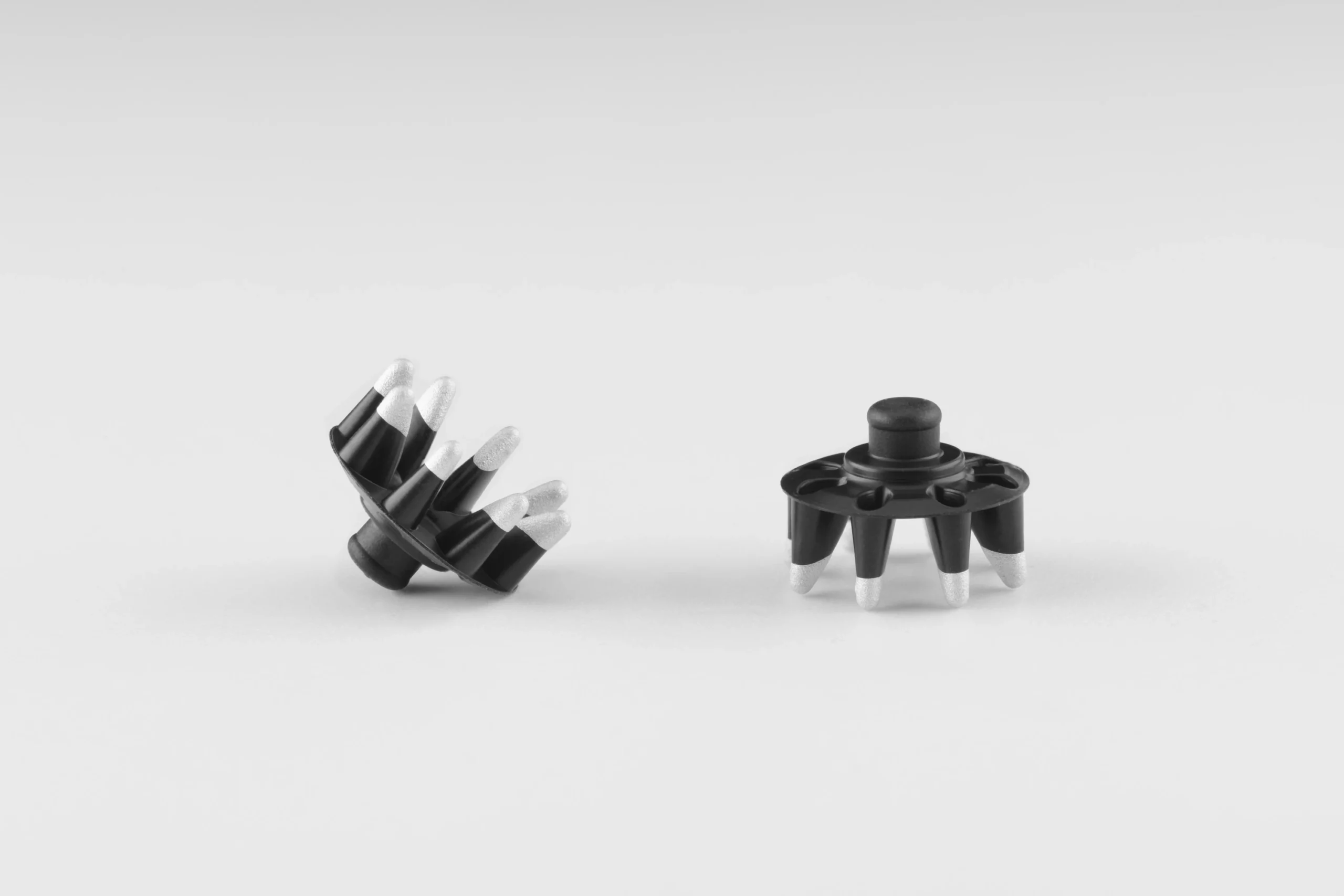

SoftPulse™
Flex
Brush Flex design has been designed for hair penetration and improved comfort. In hairy regions, the legs can easily penetrate hair and thanks to their design, the oriented radial displacement will improve contact with the skin.
- Brush design
- 8 legs (6.5 mm L)
- 9.5 mm total height
- 13 mm outer diameter
- 6.8 mm2 contact area
- ECG standard snap
Suitable for:
Headset
Glasses

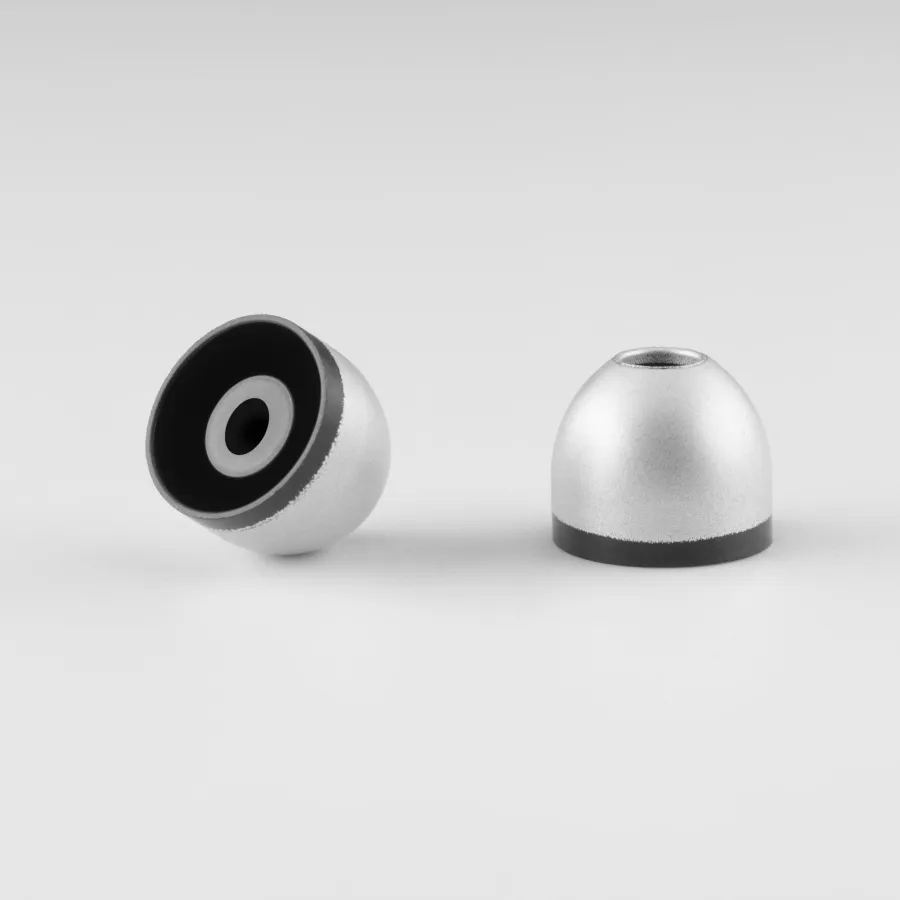

SoftPulse™
In-Ear
In-ear design has been specifically developed for in-ear application. The shape perfectly fits the ear-canal morphology for an optimal contact. The thin side walls of the electrodes allow easy deformation and improved comfort.
- Earbud design
- 10 mm total height
- 12 mm outer diameter
- 362.4 mm2 contact area (theoretical)
- Round connection, 3.1 mm internal diameter
Suitable for:
hearable
Customization
Are you interested to boost your wearable application to the next level? We would be happy to assist you. Get in touch with us.
